YOLO Trailers

Electric Brake Upgrade Kit

Electric Brake Upgrade Kit

Regular price $495.00 USD
Regular price Sale price $495.00 USD
Sale Sold out
Shipping calculated at checkout.

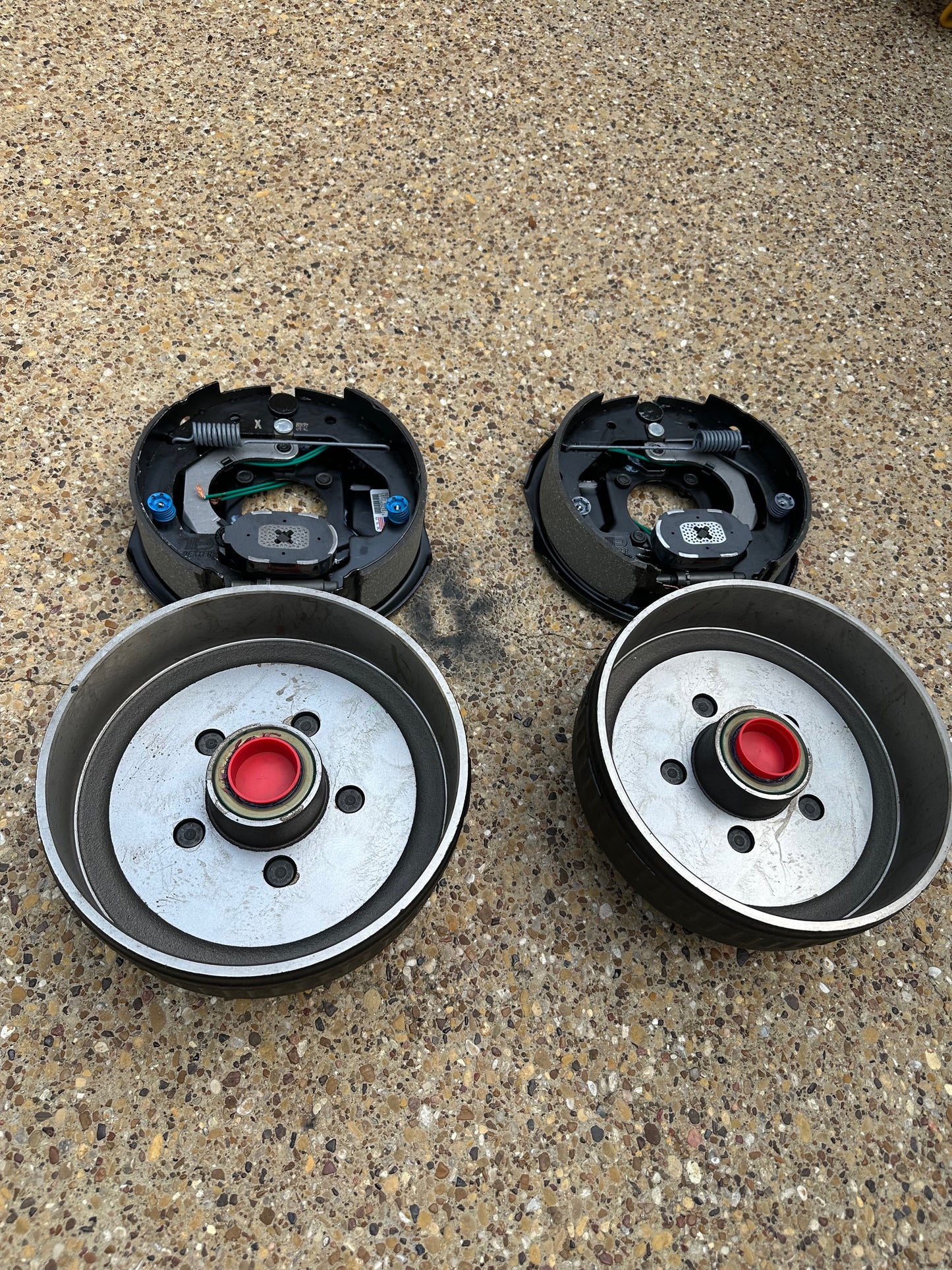

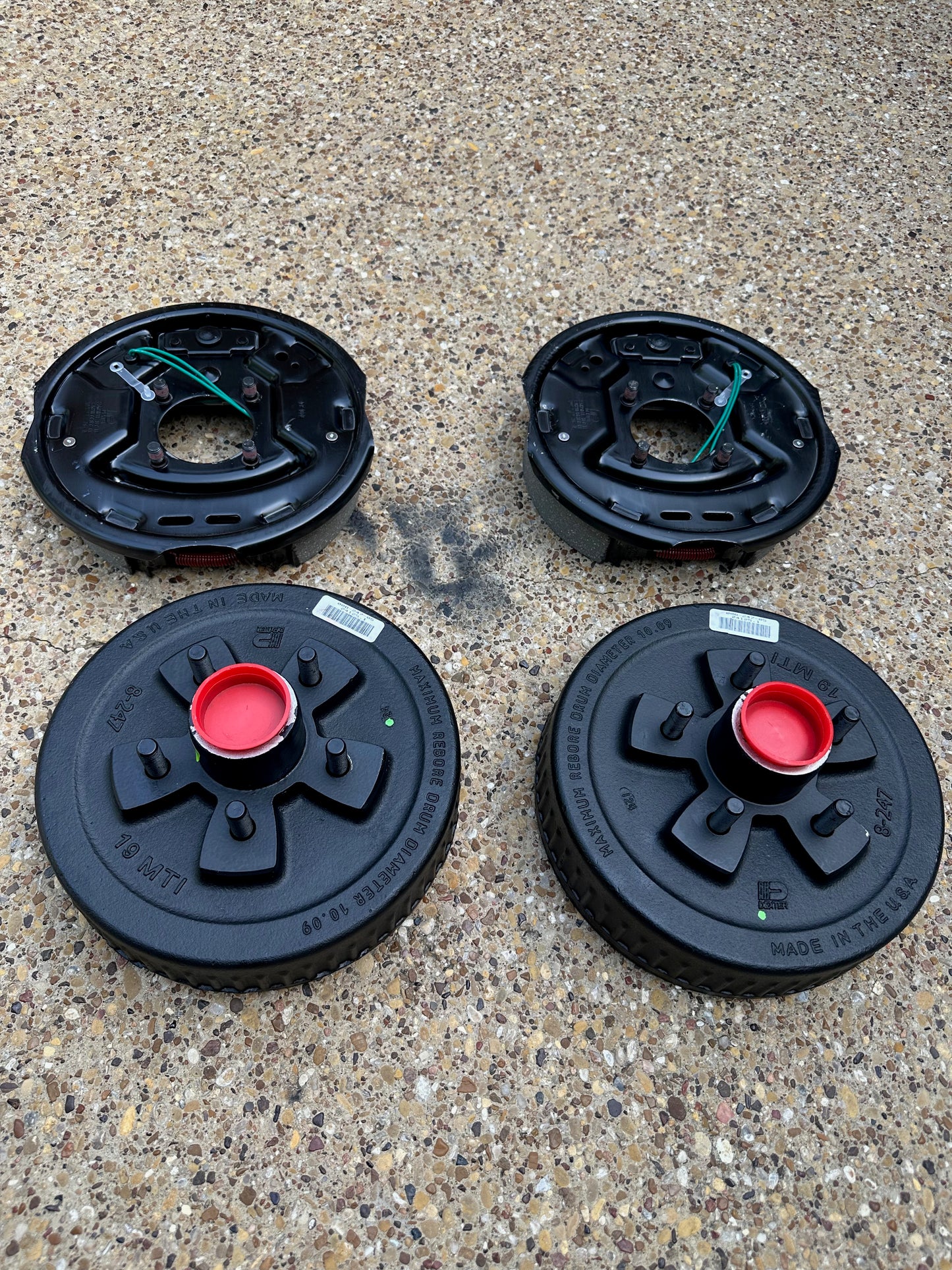

This kit of trailer brake parts can be purchased to upgrade your existing YOLO Trailer with electric brakes. If upgrade kit is purchase along with a trailer we will install the brakes for you. Kit includes:

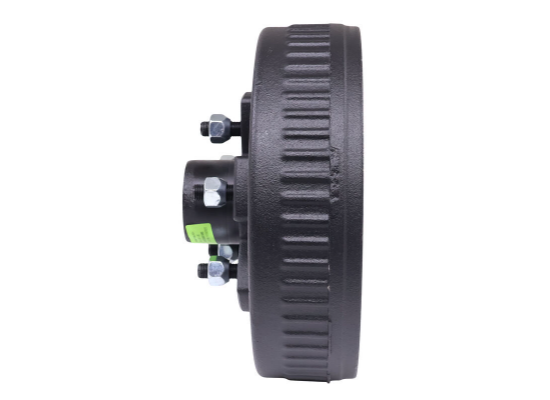

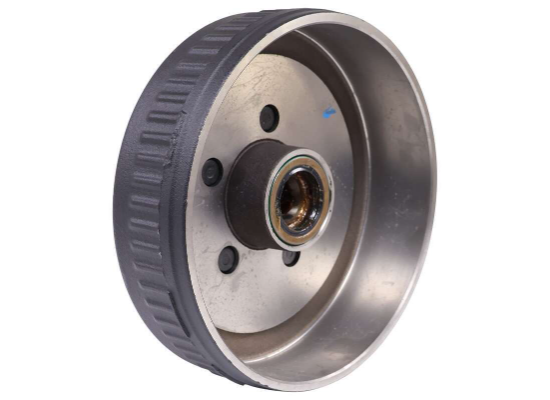

(2) Trailer Hub & Drum Assembly for 3,500-lb Axles - 10" Diameter - 5 on 4-1/2:

Features:

  • Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
  • Pre-greased hub is easy to install - no need to pack bearings
  • Sturdy iron construction
  • Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included
  • Hub and drum are made in the USA

Specs:

  • Application: 3,500-lb E-Z Lube trailer axles with #84 spindles
  • Drum dimensions: 10" diameter x 2-1/4" wide
    • Works with 10" brake assembly
  • Bolt pattern: 5 on 4-1/2"
  • Grease cap flange diameter: 1.986"
  • Wheel bolt diameter: 1/2"
  • Weight capacity: 3,500 lbs

Bearing, Race, and Seal Information:

  • Bearings (included)
    • Inner bearing: L68149 (1.378" inner diameter)
    • Outer bearing: L44649 (1.063" inner diameter)
  • Races (included)
    • Inner race: L68111
    • Outer race: L44610
  • Grease seal (included): 10-19
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"

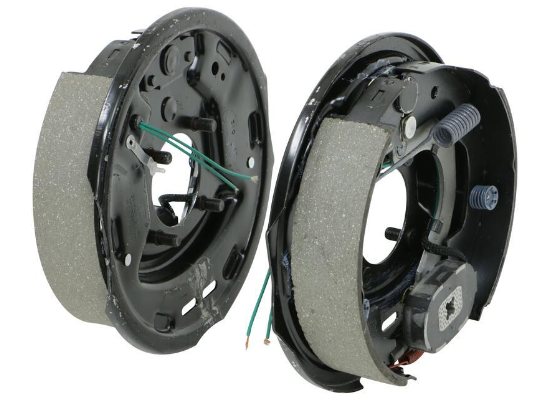

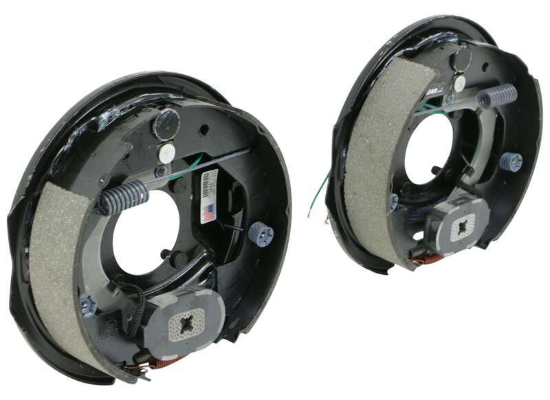

(1) Dexter Electric Trailer Brakes - 10" - Left/Right Hand Assemblies - 3.5K

Features:

  • Easier to install and gives you more control than hydraulic brakes
  • Periodic manual adjustment required
    • Can be done in minutes
  • Long-lasting brake pads offer excellent braking torque
    • Fully bonded to shoes for more consistent braking compared to riveted pads
  • Adjuster plugs (included) protect internal components from dirt, grime, and road debris
  • Left-hand (driver's-side) and right-hand (passenger's-side) brake assemblies included
    • Includes mounting hardware
  • Made in the USA

Specs:

  • Dimensions: 10" diameter x 2-1/4" wide
  • Mounting flange bolt pattern: 4 bolt
    • Mounting flange bolt hole distance: 2-7/8" apart on center
  • Wheel size: 14", 14-1/2", and 15"
  • Axle rating: 3,500 lbs
  • Limited 5-year warranty
