Everything you love from our base YT416 model with the addition of Timbren Axle-Less Independent suspension and electric brakes
Bigger Size: Most other M416-Style trailers follow the M416 bed dimensions of 36" x 72". Our YT416 has a bed size of 48" x 72" which is a 25% increase in bed-size area when compared to other typical M416 trailers.

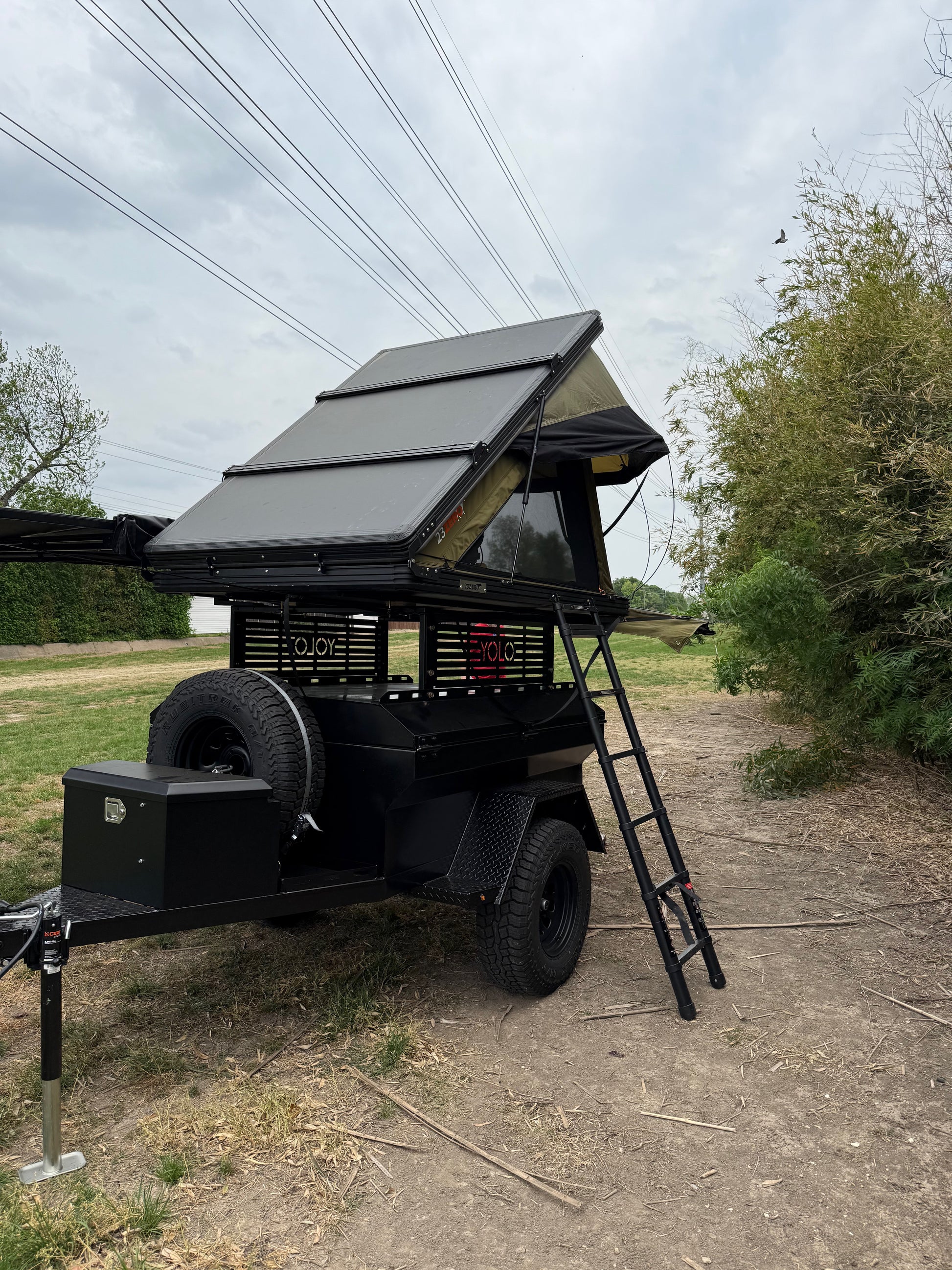

Get rid of the RTT that lives on your vehicle. Mounting/removing a Roof-Top-Tent (RTT) from your vehicle is always a chore, no matter the weight. With the YT416 you can find a new permanent home for your RTT. No more dealing with the hassle of mounting/removing your RTT or wondering if your car will fit in that parking garage.
Base Camp. Tired of breaking down your RTT whenever you want to go exploring with your vehicle? With the YT416 you can drop the trailer at your campsite and free up your vehicle for exploration!
All-Steel Construction. The entire body and lid are made out of 14 gauge sheet steel. The floor, fenders, and interior tailgate are 14 gauge diamond-plate steel.
Extendable Front Tongue: Extend front tongue up to 20".

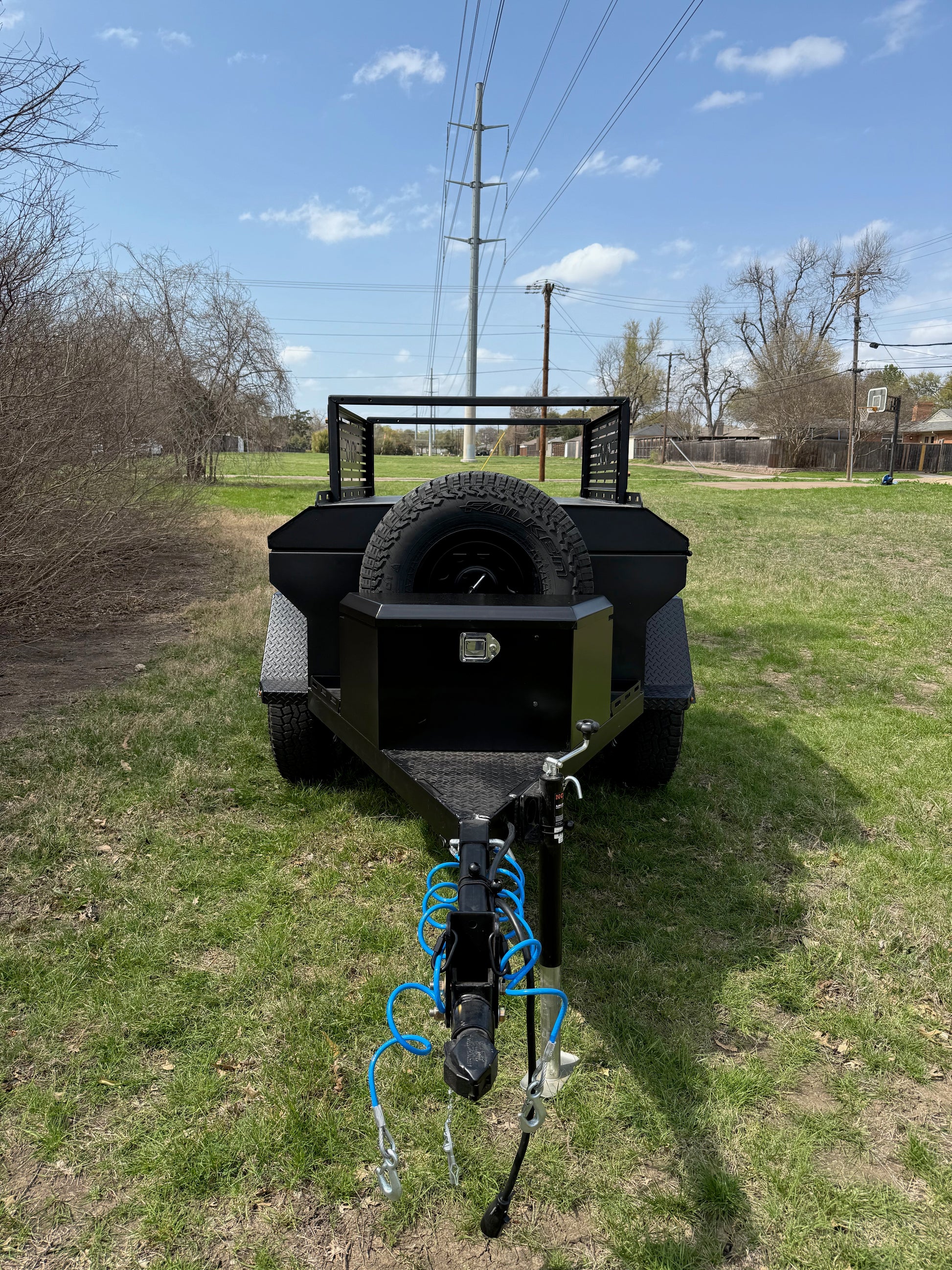

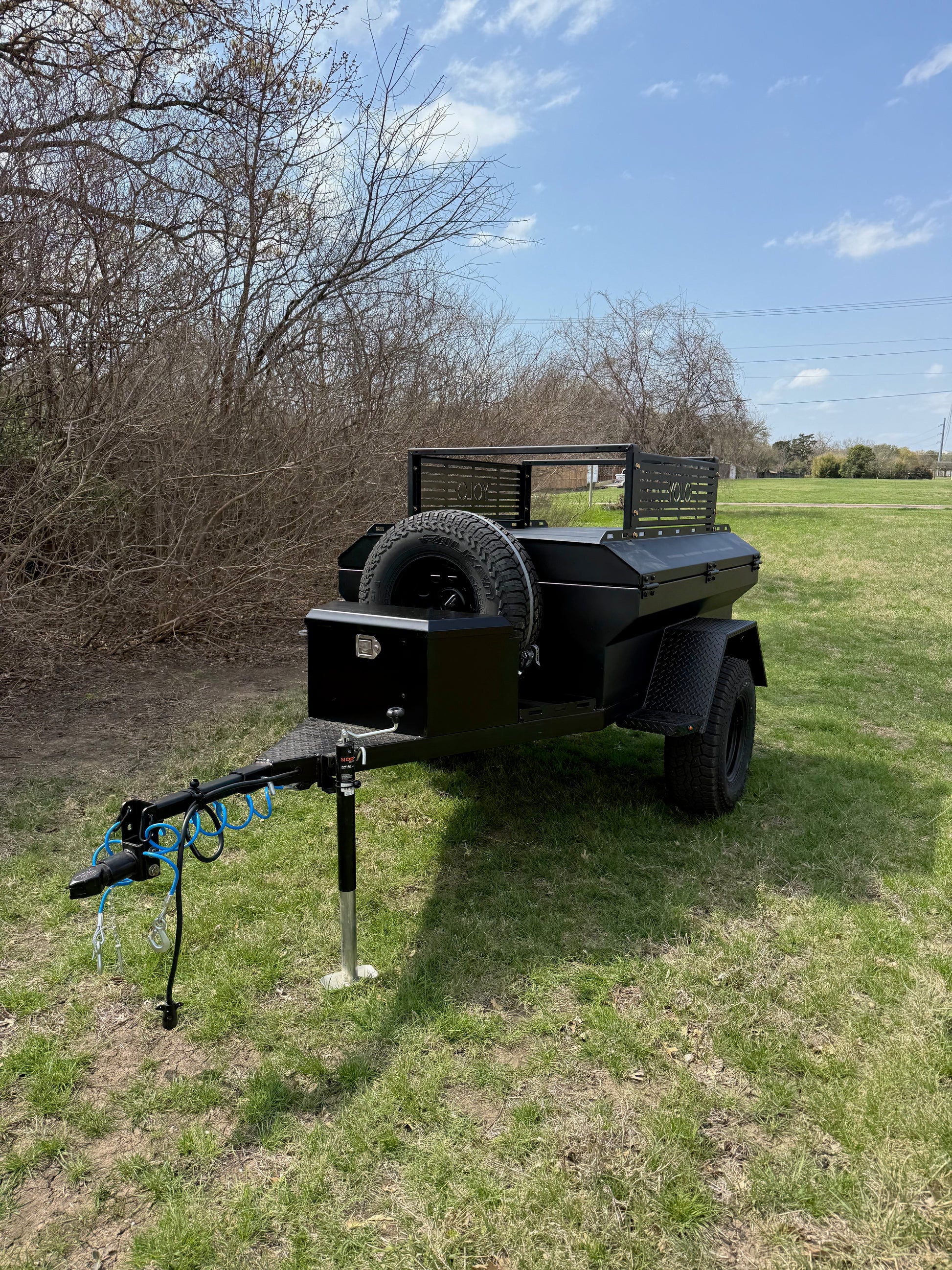

Spare Tire (or other cargo) Tongue Rack: Mount a spare tire (optional) in our custom-fabricated front-tongue rack. The rack has E-Track mounting holes cut into the bottom surface. E-Track mounting holes can be used for spare-tire mounting, or as a storage area for additional gear.
Frame rails are 3" steel C-channel that are in one continuous piece from the rear and meet and the tongue
Tongue receiver is 3" steel C-Channel with multiple attachment points. Hitch coupler is a standard 2" coupler but can be swapped-out for a lunette-eye or other coupler
7-pin wiring harness, designed to seamlessly integrate with your vehicle's wiring.
Standard Tires are Falken Rubitrek A/T 31x10.50R15 (31" tall x 10.5" wide) which allow for excellent Off Road performance

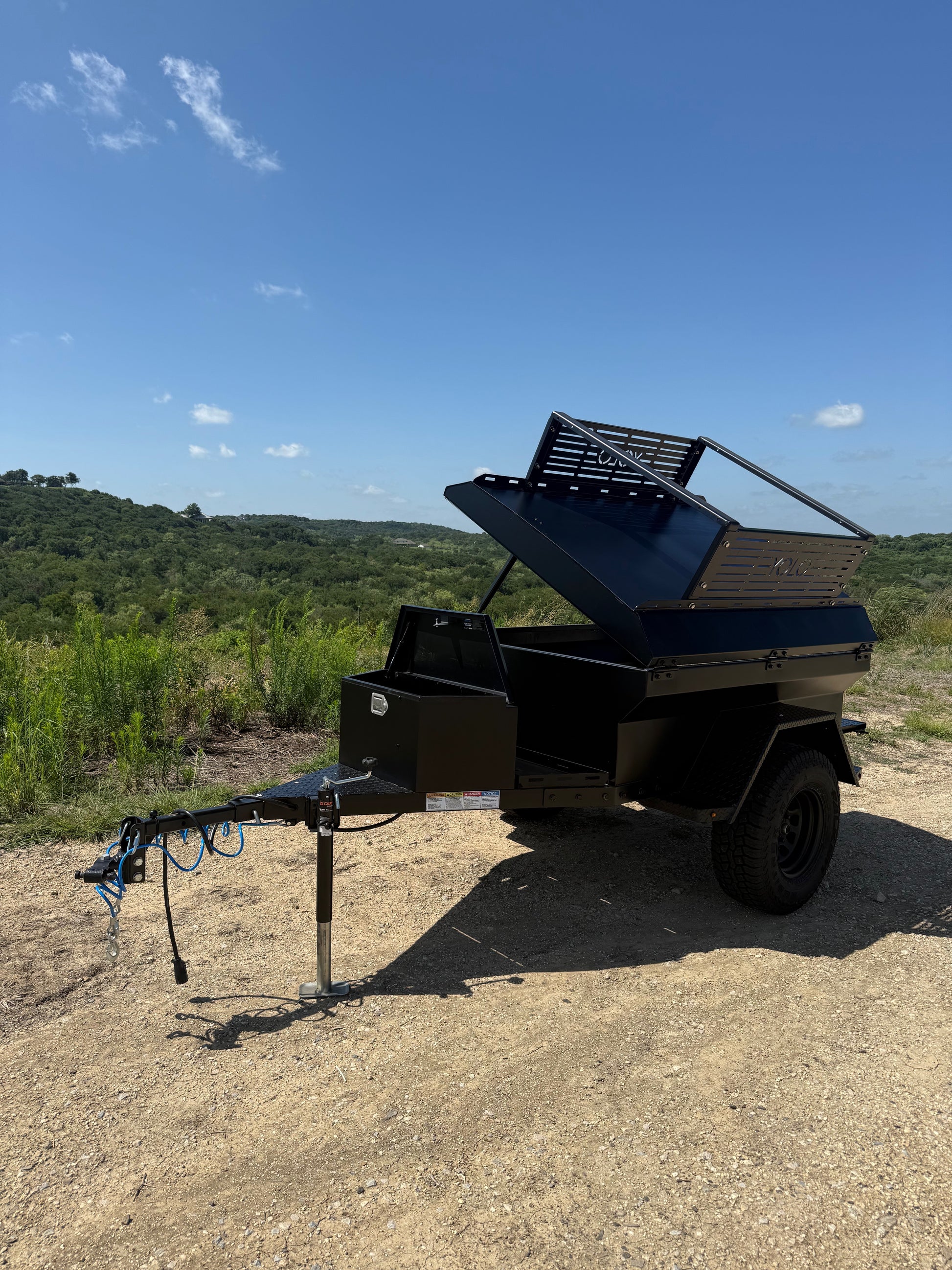

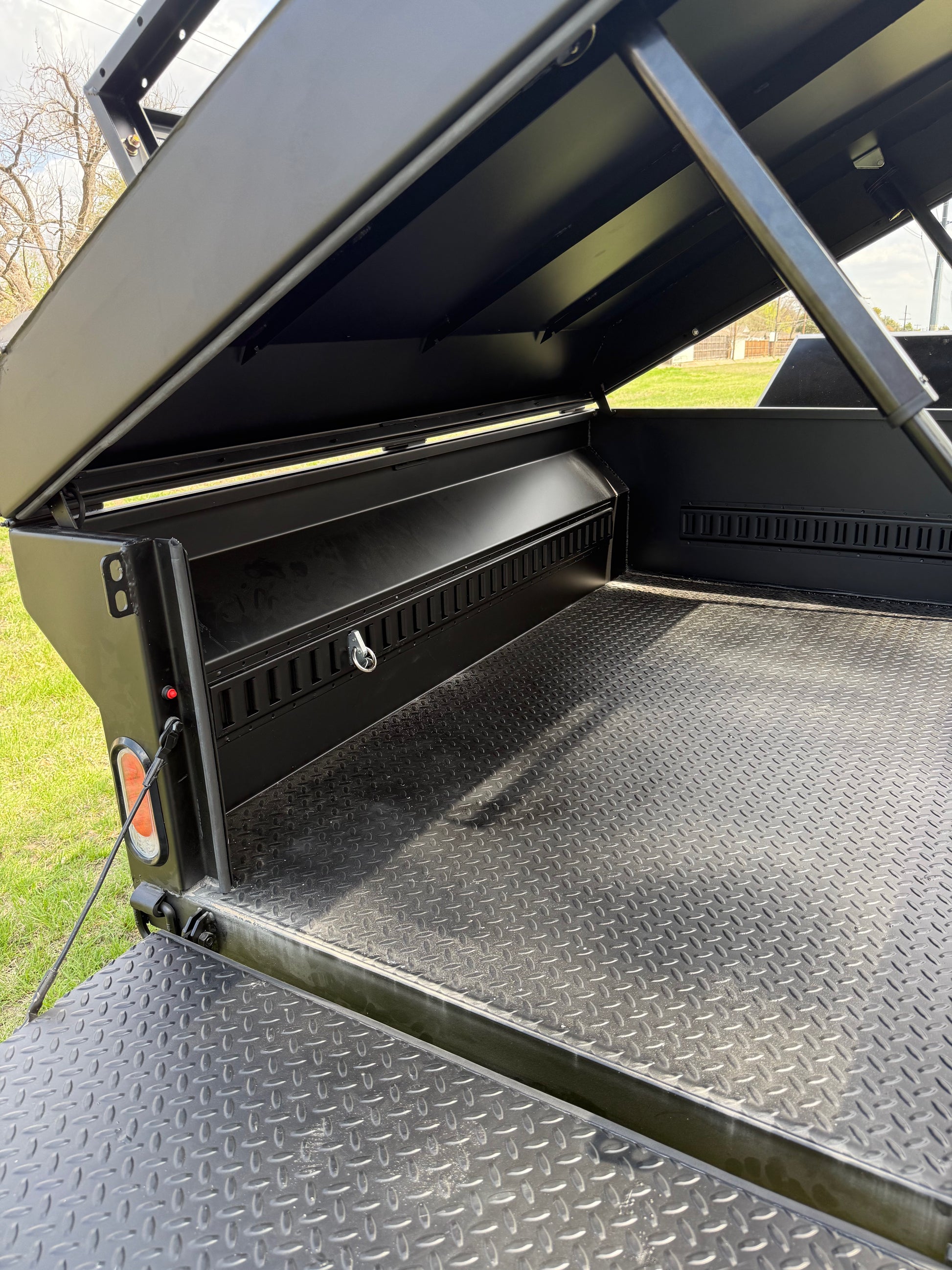

Lid has pneumatic assist for opening and closing. Lid can be opened with a RTT mounted (not while RTT is open) on the lid rack. Pneumatic lifters are easily sourced and replaceable should you need to increase/decrease the lift assistance

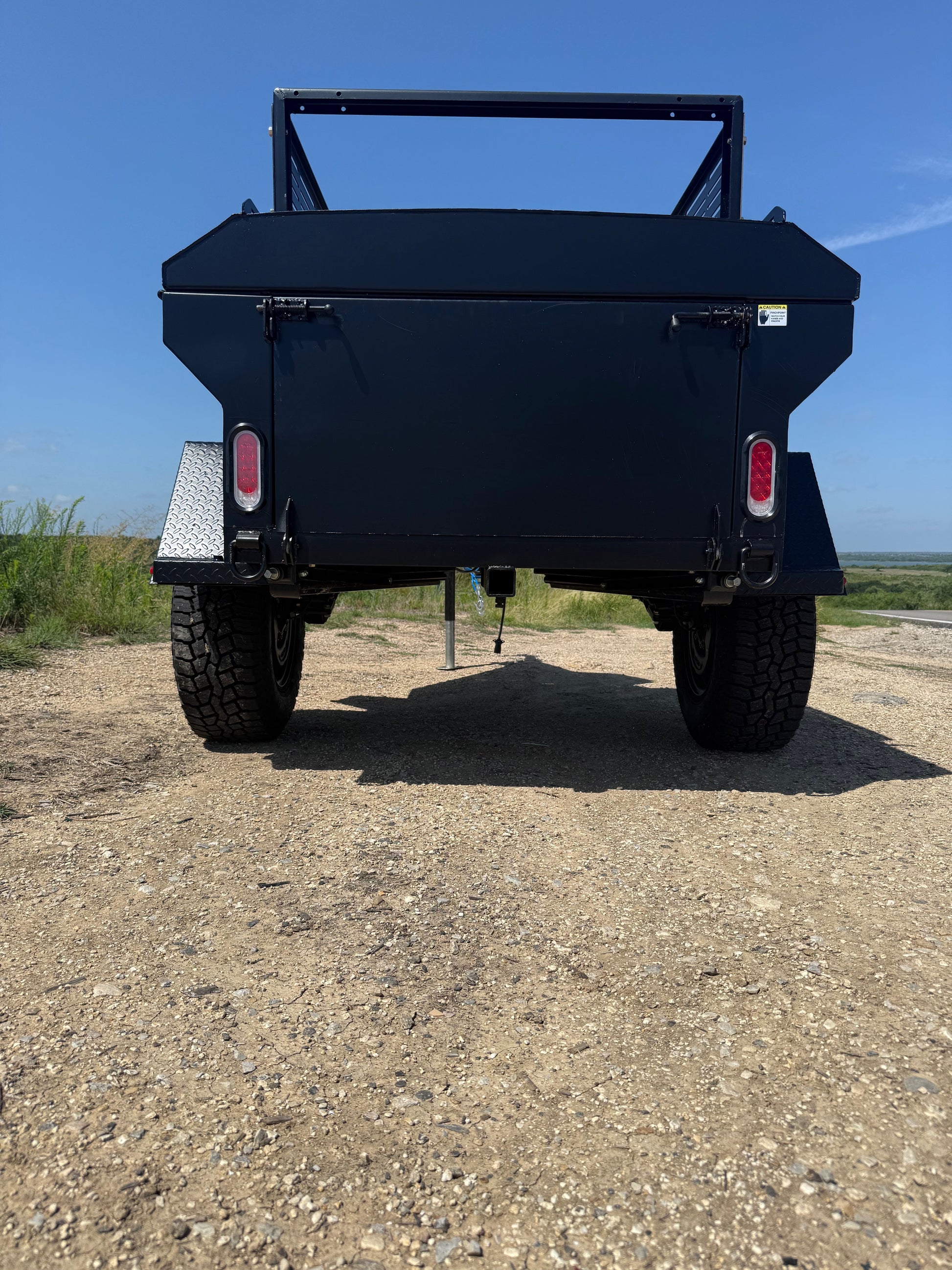

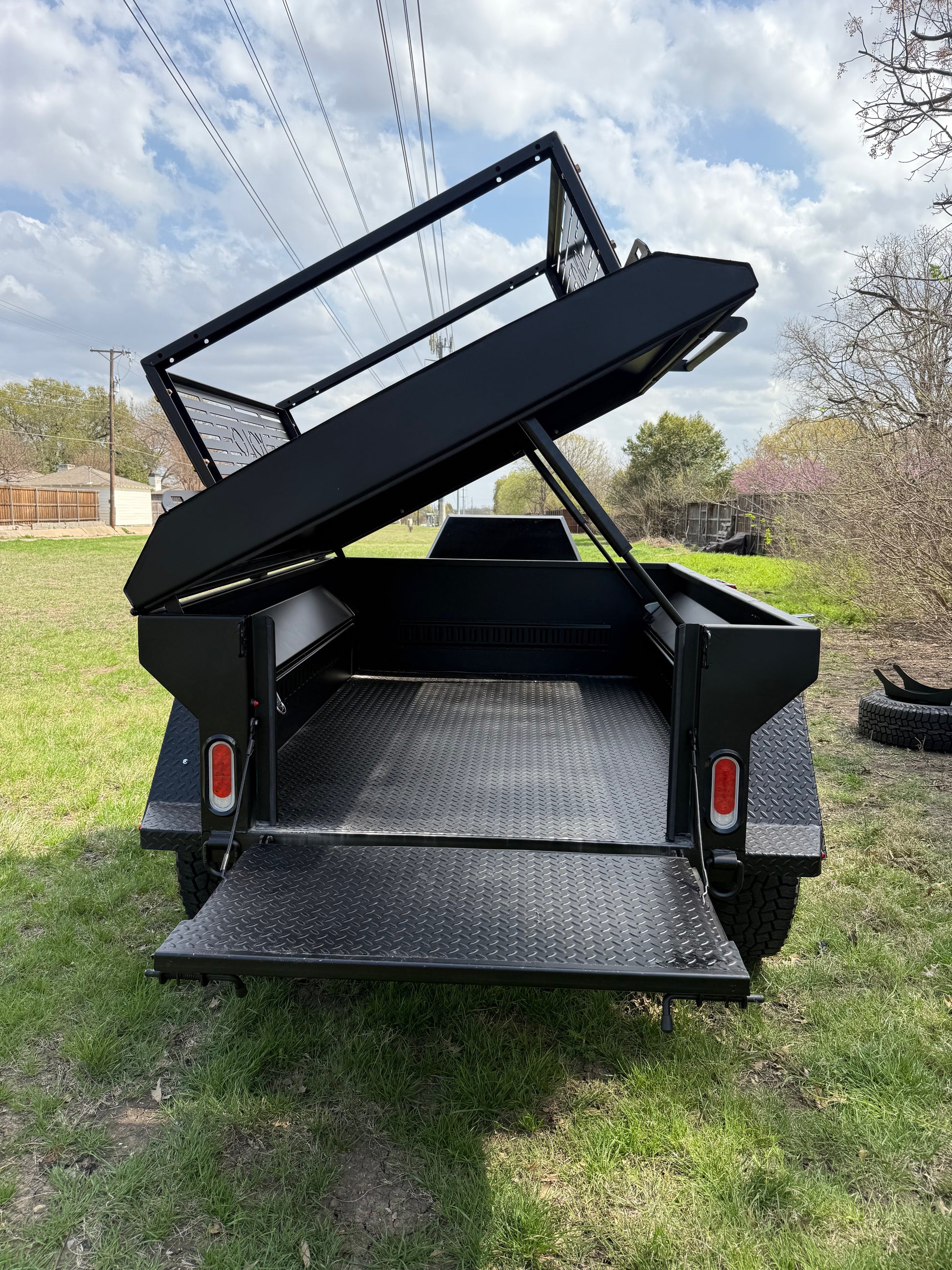

Tailgate opens flush with floor of cargo area. Tailgate allows easy access to cargo area if rack mounted RTT is open and/or trailer lid is closed.
2" hitch receiver on rear of trailer. Can be used for hitch-mounted accessories (bike carrier, tire carrier, cargo carrier, etc)
Rear stabilizer jacks

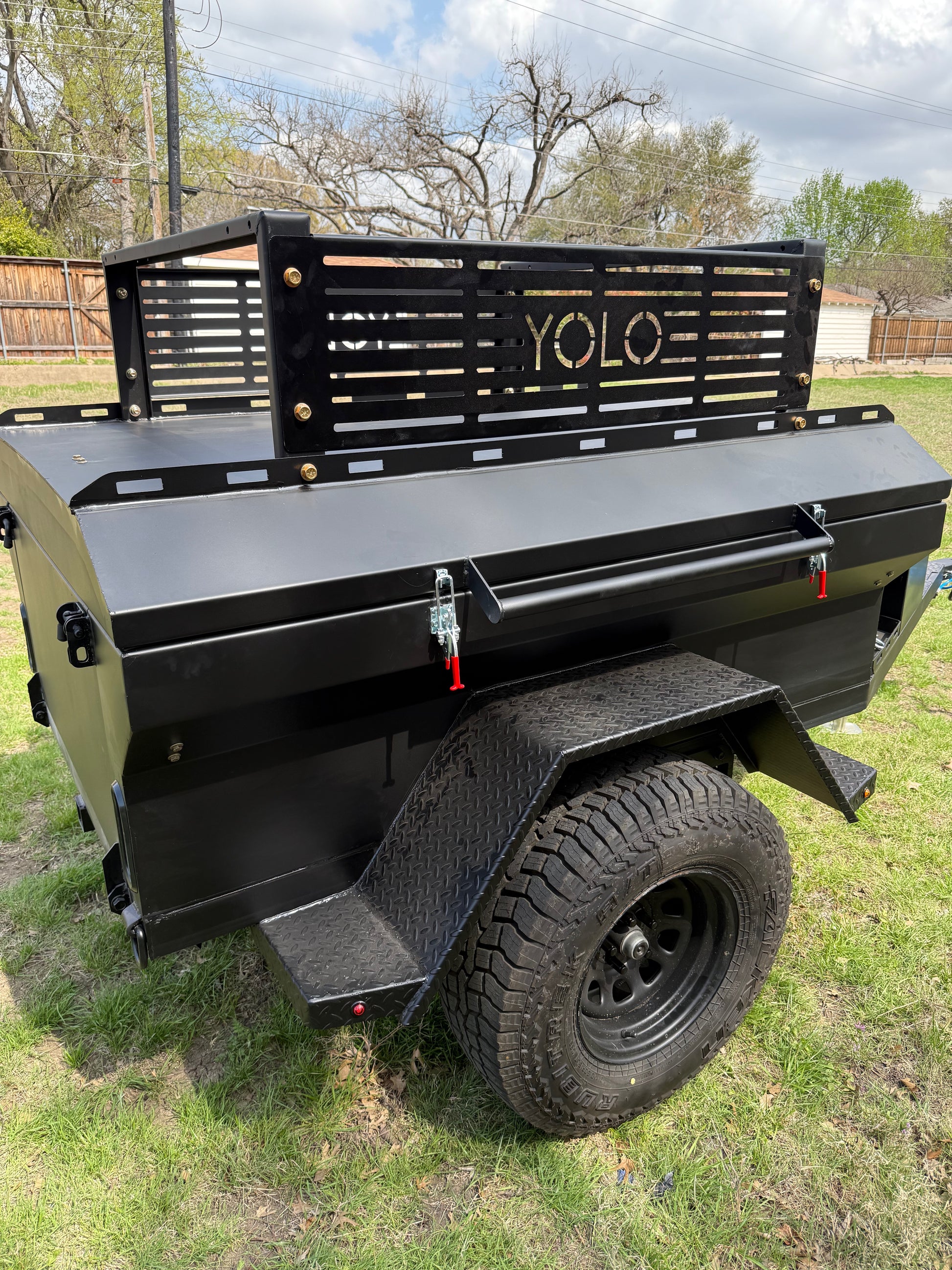

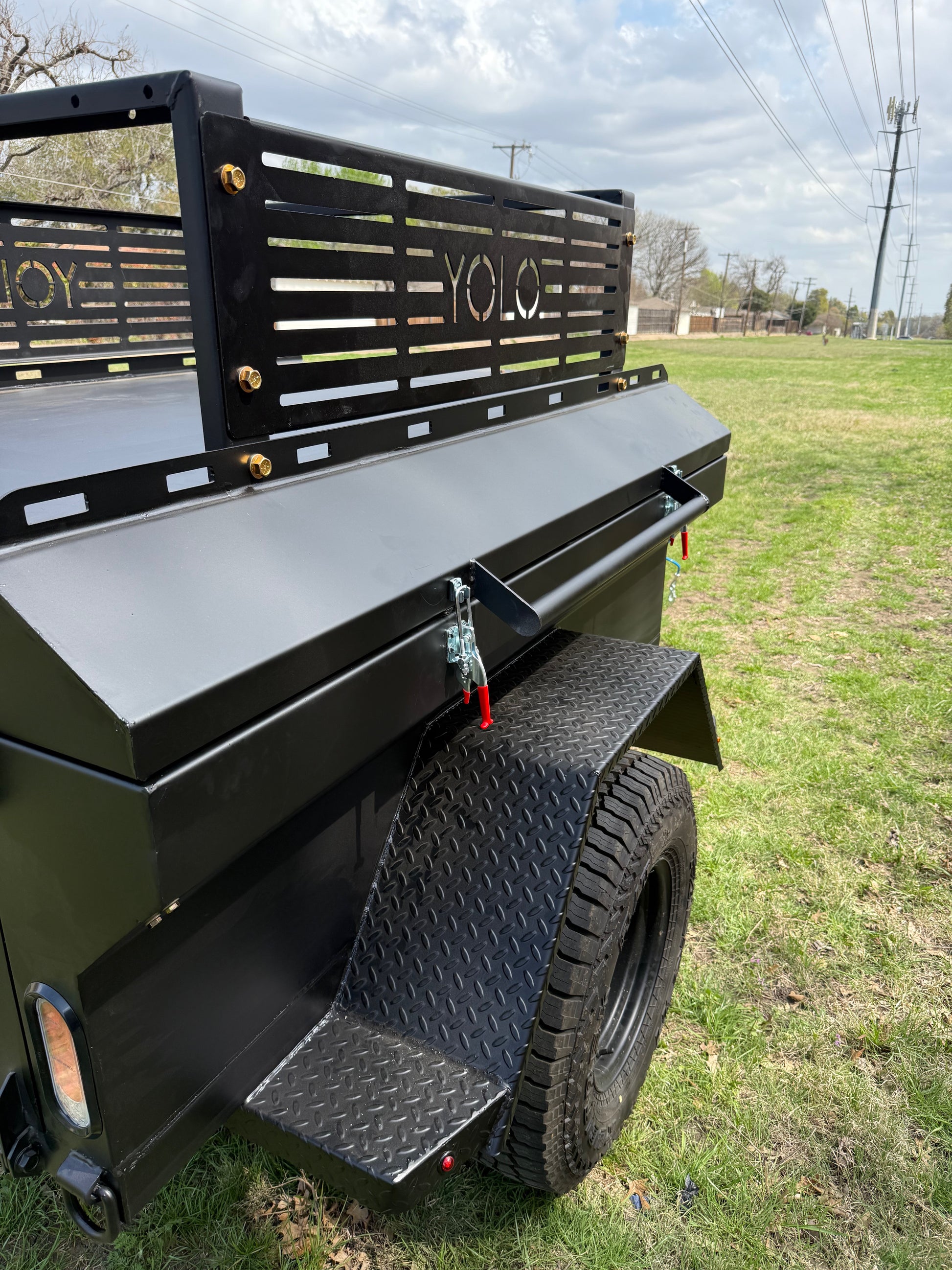

Custom-made tent rack with side mounting rails
Tent rack is bolt-on. Can easily be removed if desired
E-Track tie-down rail system on both interior sides and front interior side of trailer (not on tailgate)

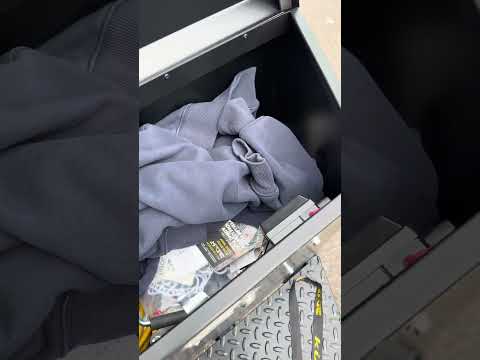

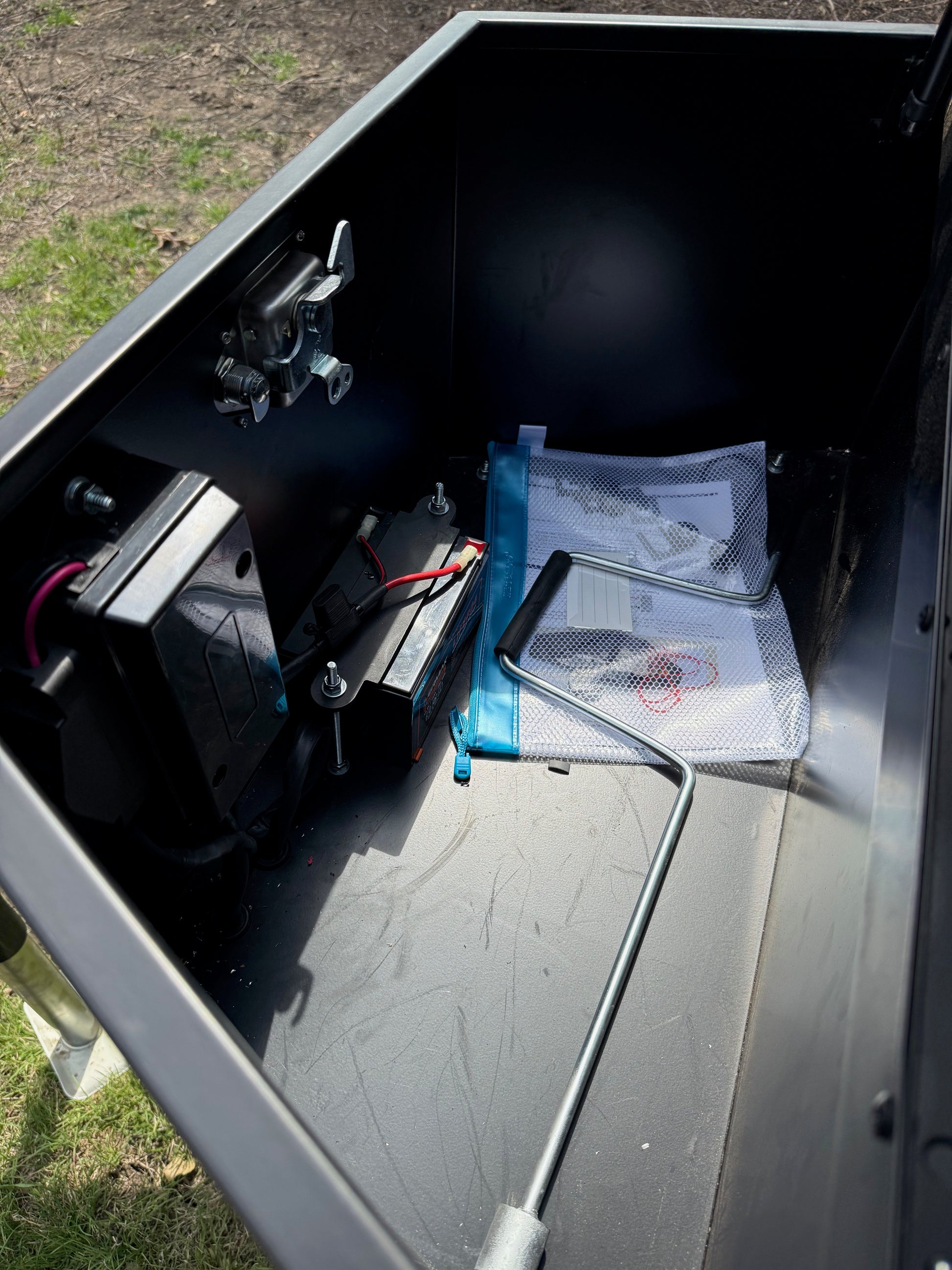

Lockable toolbox/cargo box (wiring box is located in the toolbox)
Step-plate in front of toolbox on tongue
Standard trailer tongue jack
Lid and tailgate can be locked with a padlock (not provided)
Seamlessly transition between utility trailer, motorcycle trailer, and weekend getaway companion.
Weighs 1,100 lbs empty. Can be pulled by most mid-sized and larger vehicles
What's Included

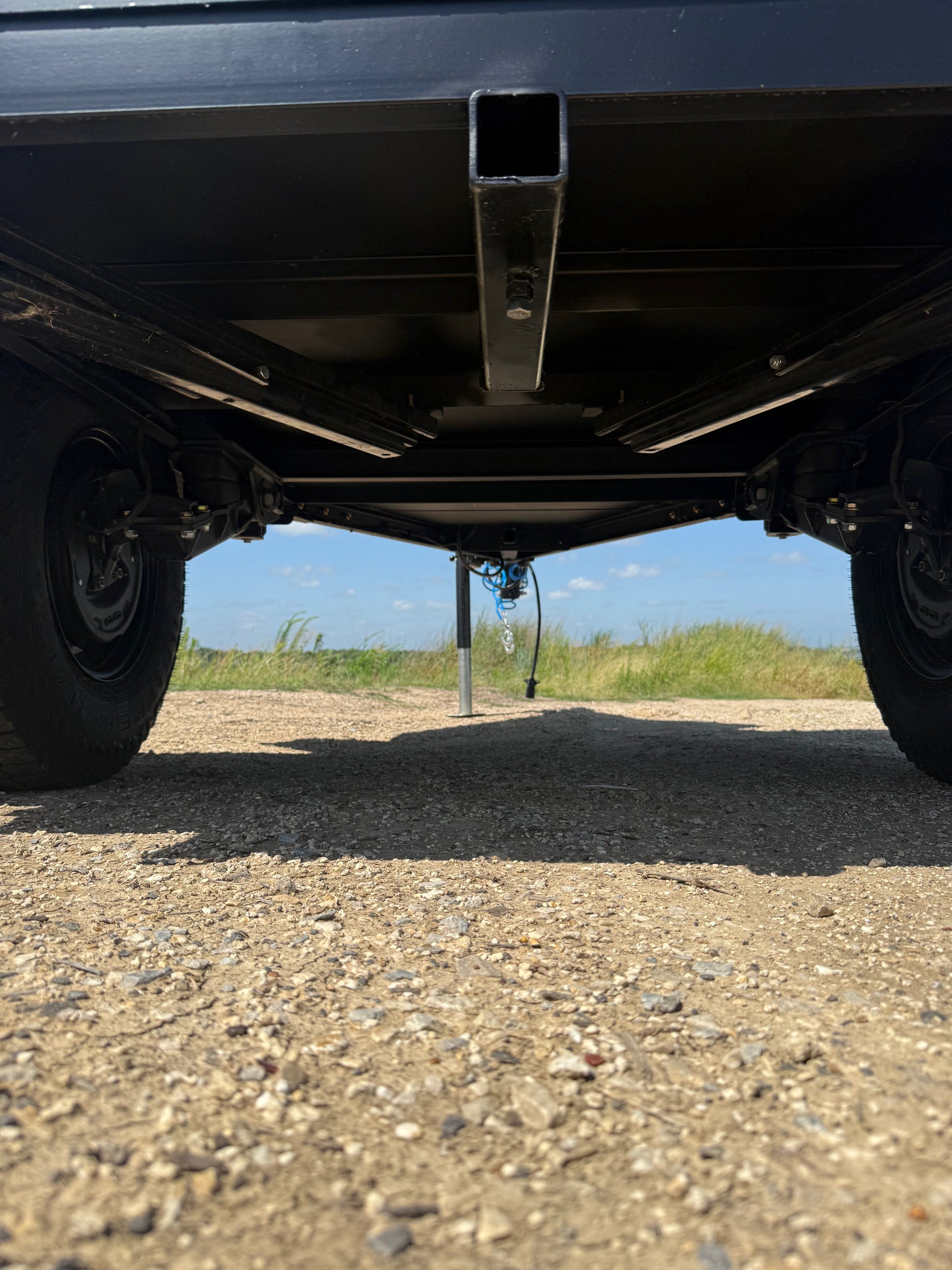

Suspension
Timbren Axle-Less Suspension (2,200 lb)
Axle
Timbren Axle-Less Suspension (2,200 lb)
Brakes
Electric Brakes, Dexter 3,500 lb
Chassis/Frame
3" Steel C-Channel
Body
14-Gauge Steel Plate
Bed
14-Gauge Steel Diamond Plate
Fenders
14-Gauge Diamond Plate Steel, super-wide (12")
Tongue Jack
2,000 lbs Swivel Jack
Coupler
2" coupler standard, can be swapped (lunette eye, Lock-n-Roll Hitch, etc)
Wheels
15" x 8" Pro Comp, 5x4.5 bolt pattern
Tires
Falken Rubitrek A/T 31x10.50R15 (31" tall x 10.5" wide)
Stabilizer Jacks
Rear stabilizer jacks & front tongue jack
Bed Size
48" x 72"
Trailer Dimensions (w/ roof rack, no tent)
72" wide x 132" long x 65" tall
Tailgate Clearance w/ lid closed
35" wide x 19" tall
GVWR
2,200 lbs
Dry Weight
1,100 lbs
Cargo Capacity
1,100 lbs
Integrate tie-down system
E-track tie down rails on interior front and side walls
Wiring
7-Pin Wiring Harness/Plug
Toolbox
2-3/4 cu. ft. Steel Tongue Toolbox (lockable, keys provided)
*Not Included with purchase of Trailer model (some items may be add-on options....others may be purchased by separate vendors)
Production lead-time is roughly 4-6 weeks. If Item is out of stock then we are actively producing more trailers. Newly produced trailers will be released on a first-come, first-served basis...meaning orders for back-ordered (sold out) product will be fulfilled in the order they are received. Want to reserve a trailer? Click here. Regular communication will be shared about your place in line. If product is not indicated as "Sold Out" then we have inventory on-hand and can fulfill in under 48 hours if local pickup/delivery is chosen.
